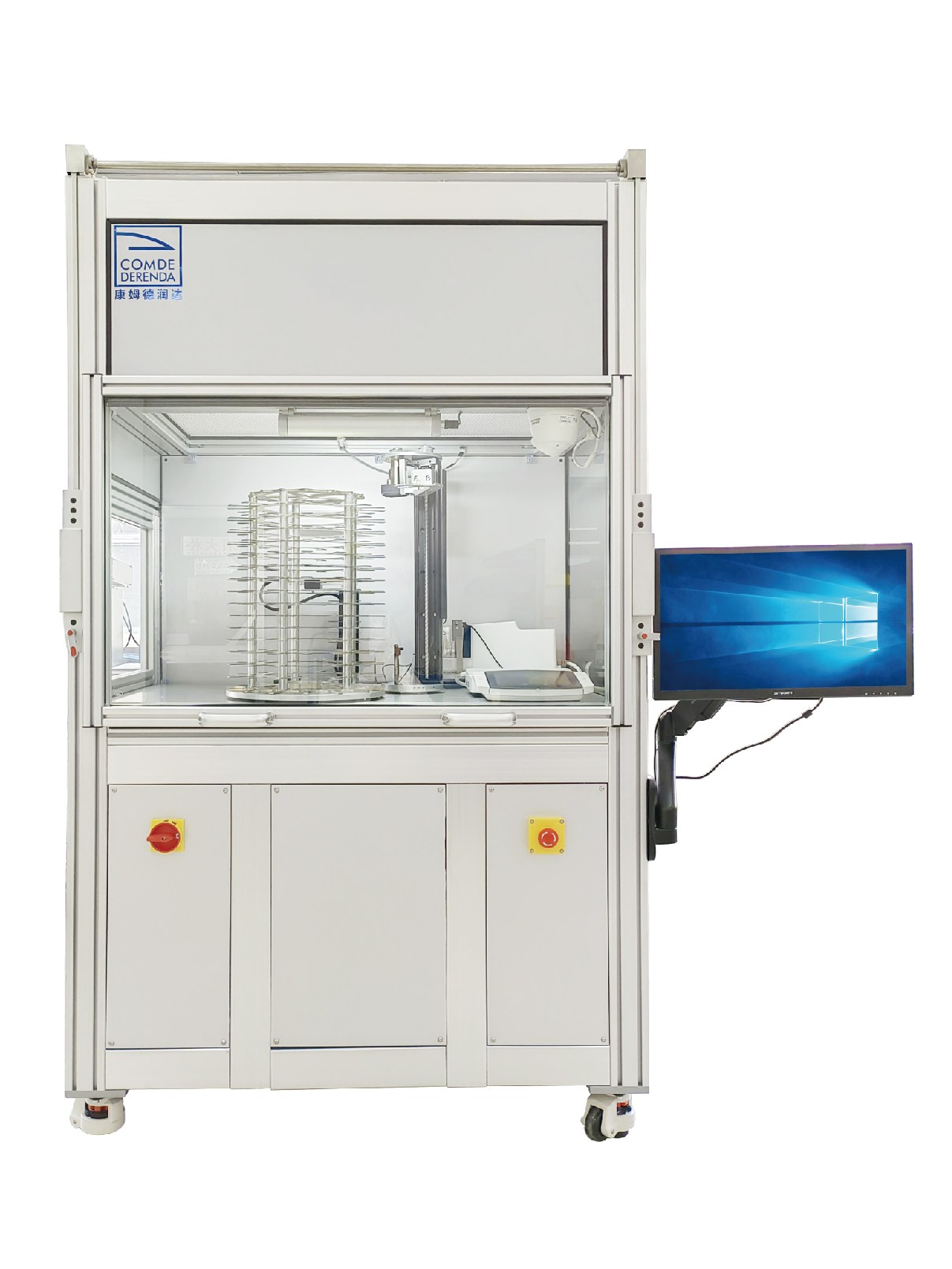

- Automatic Weighing System for gravimetric assessment of suspended particulate matter
- Reference device acc. to CEN12341:2014
- Batch processing ability: 225 filters of 47mm / 105 filters of 90mm
应用
- Automatic Weighing System for gravimetric assessment of suspended particulate matter
- Reference device acc. to CEN12341:2014
- Batch processing ability: 225 filters of 47mm / 105 filters of 90mm
- Power supply: 230 V +/- 10%; 50 Hz
- Operating conditions: 15-35 °C;35-60% rel. humidity
- Microbalance readability: 0.001 mg
- Repeatability < ±3μg
- Climate control unit to ensure constant temperature and relative humidity inside the weighing chamber
- RFID terminal for writing and reading weighing data into filters
- Data communication with Derenda IOT cloud solution (Automatic calculation of PM concentration)
- FFU (Fan filter unit) to keep the weighing chamber clean
- Ionization fan for filter discharging
- Batch processing ability: 225 filters of 47mm / 105 filters of 90mm
- Power supply: 230 V +/- 10%; 50 Hz
- Operating conditions: 15-35 °C;35-60% rel. humidity
- Microbalance readability: 0.001 mg
- Repeatability < ±3μg
- Climate control unit to ensure constant temperature and relative humidity inside the weighing chamber
- RFID terminal for writing and reading weighing data into filters
- Data communication with Derenda IOT cloud solution (Automatic calculation of PM concentration)
- FFU (Fan filter unit) to keep the weighing chamber clean
- Ionization fan for filter discharging
- Filter size: 47 / 90 mm
- Filter encoding type: punched binary encoding
- Interface RS232 for data transmission
- Dimensions (W x H x D): 1180 x 800 x 2000 mm
- Weight: appr. 850 kg
