空气质量监测

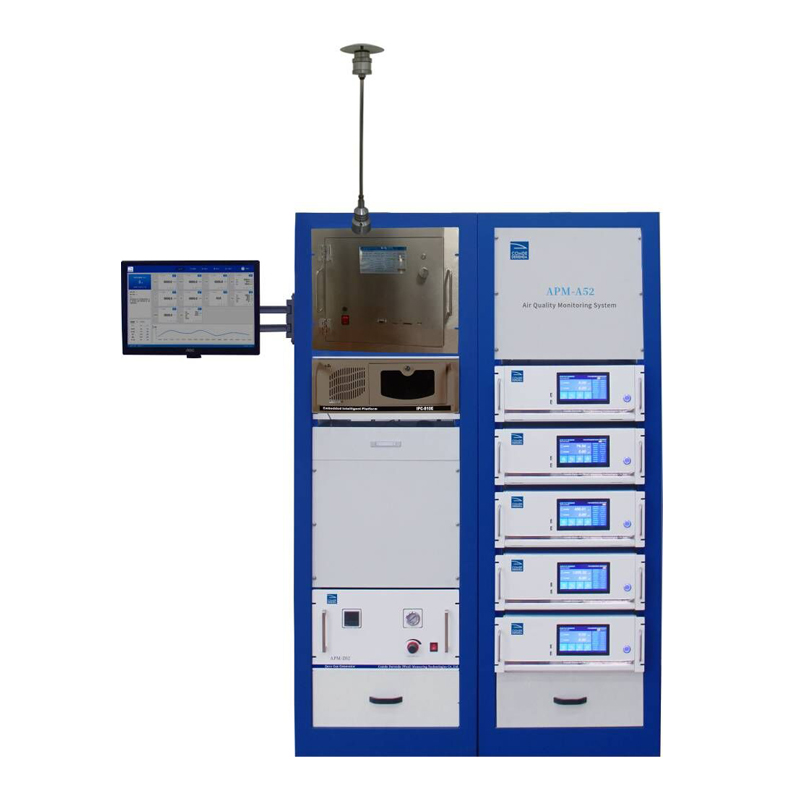

The advanced ambient air quality automatic monitoring system is used to quickly and accurately monitor the regional ambient air quality, analyze the spatial and temporal distribution law of pollutants, track the source of pollutants.
The advanced ambient air quality automatic monitoring system is used to quickly and accurately monitor the regional ambient air quality, analyze the spatial and temporal distribution law of pollutants, track the source of pollutants, and provide authoritative technical support for the continuous improvement of the ambient air quality.
-Optional: CO,O3,SO2,NO2,PM2.5, PM10,Dynamic calibrator and Zero Gas Generator
Measuring parameters |
Content |
PM1.0 |
Measuring range 0 to 2500 μg/m³,resolution 0.1μg/m³ Precision: ±2%F.S |
PM2.5 |
Measuring range 0 to 2500 μg/m³,resolution 0.1μg/m³ Precision: ±2%F.S |
PM10 |
Measuring range 0 to 2500 μg/m³,resolution 0.1μg/m³ Precision: ±2%F.S |
TSP |
Measuring range 0 to 2500 μg/m³,resolution 0.1μg/m³ Precision: ±2%F.S |
Gas
|
Measuring range |
Precision |
Zero drift |
Metric drift |
Lowest detection limit |
Response time |
O3 |
0-500-20000ppb Automatic range switching |
±1%/24h F.S |
±1ppb/24h |
±1%/24h F.S |
0.5ppb |
<60s |
CO |
0-50ppm open end |
±1%/24h F.S |
±0.2ppm/24h |
±1%/24hF.S |
0.04ppm |
<60s |
SO2 |
0-500-20000ppb Automatic range switching |
±1%/24h F.S |
±1ppb/24h |
±1%/24h F.S |
0.5ppb |
<120s |
NO2 |
0-500-20000ppb Automatic range switching |
±1%/24h F.S |
±1ppb/24h |
±1%/24h F.S |
0.5ppb |
<120s |
