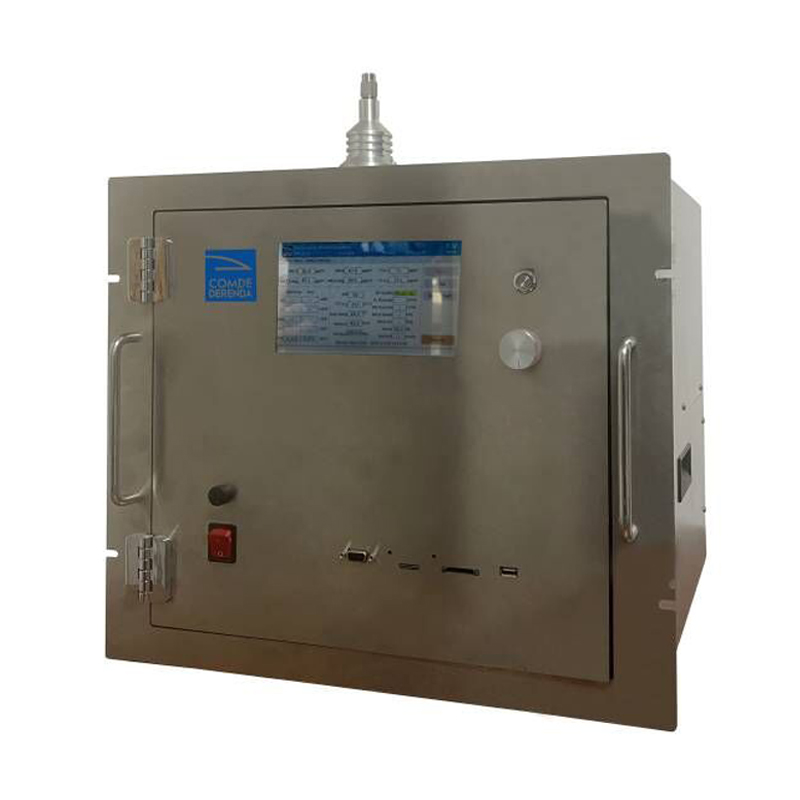

APM-2E-19–Air Pollution Monitor
APM-2E-19–空气污染监测仪

Air pollution monitor for PM1.0, PM2.5, PM10, and TSP monitoring

- Air pollution monitor for PM1.0, PM2.5, PM10, and TSP monitoring
- TÜV approved, Compliant with 2008/50/EC EN15267
- Nephelometric principle combined with virtual impactor
- Photometer in regulated heating chamber
- Alternating measuring of PM10 and

型号:APM-2E-19



APM-2E-19–Air Pollution Monitor

应用

产品介绍技术参数

- Air pollution monitor for PM1.0, PM2.5, PM10, and TSP monitoring

- TÜV approved, Compliant with 2008/50/EC EN15267

- Nephelometric principle combined with virtual impactor

- Photometer in regulated heating chamber

- Alternating measuring of PM10 and PM2.5 with adjustable interval

- Stainless steel housing, appearance size is 19 inches



*Optional: Derenda IOT cloud solution with online remote and monitoring

*Meteorological five parameters

operational principle

Laser light scattering

Measuring parameters

Content

PM1.0

Measuring range 0 to 2500 μg/m³,resolution 0.1μg/m³

Precision: ±2%F.S

PM2.5

Measuring range 0 to 2500 μg/m³,resolution 0.1μg/m³

Precision: ±2%F.S

PM10

Measuring range 0 to 2500 μg/m³,resolution 0.1μg/m³

Precision: ±2%F.S

TSP

Measuring range 0 to 2500 μg/m³,resolution 0.1μg/m³

Precision: ±2%F.S

Technical  Specifications

Temperature

(-20-50)°C

Relative humidity

<95%RH non-condensation

Noise

<35dBA

Dehumidifying function

Automatic heating dehumidifying

Dimensions (W x H x D)

483 x442 x380.5mm

Weight

20kg

Temperature

(-20-50)°C

Relative humidity

<95%RH non-condensation

Power supply

AC220V±10%,50Hz
