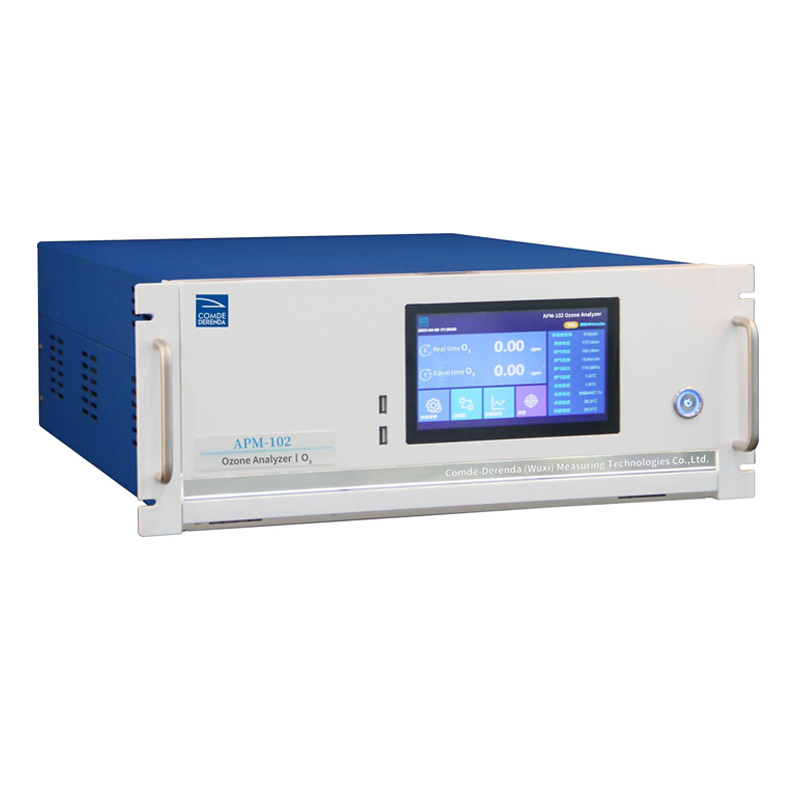

APM-102-Ozone Analyzer
APM-102 臭氧分析仪

The APM-102 implement in premiere LED based UV photometric technique.The LED technology offers also excellent stability of the measurement.

应用

产品介绍技术参数

The APM-102 implement in premiere LED based UV photometric technique.

The LED technology offers also excellent stability of the measurement.

-The stability of the system can be improved by the optical switch and the optical flux detector.

-The analyzer provides a variety of online operating parameters and remote quality control functions.

operational principle	UV absorption method
Measurement Range	0-500ppb-20000ppb automatic range switching
Measurement unit	ppb、ppm or μg/m、mg/m³
Lowest detection limit	0.4ppb
Noise	0.2ppb
Zero drift	±1ppb/24h
Span drift	±1%/24h F.S
Precision	±1%/24h F.S
Response time	<40s
Sample flow-rate	700sccm±10%
Output interface	Analog signals:0-0.5V/2V/5V/10V(4-20)mA Digit signals:RS232 or RS485
Power supply	AC220V±10%,50Hz
Working atmosphere	Temperature:5-40 °C Relative humidity:<85%

APM-102-Ozone AnalyzerAPM-102 臭氧分析仪
